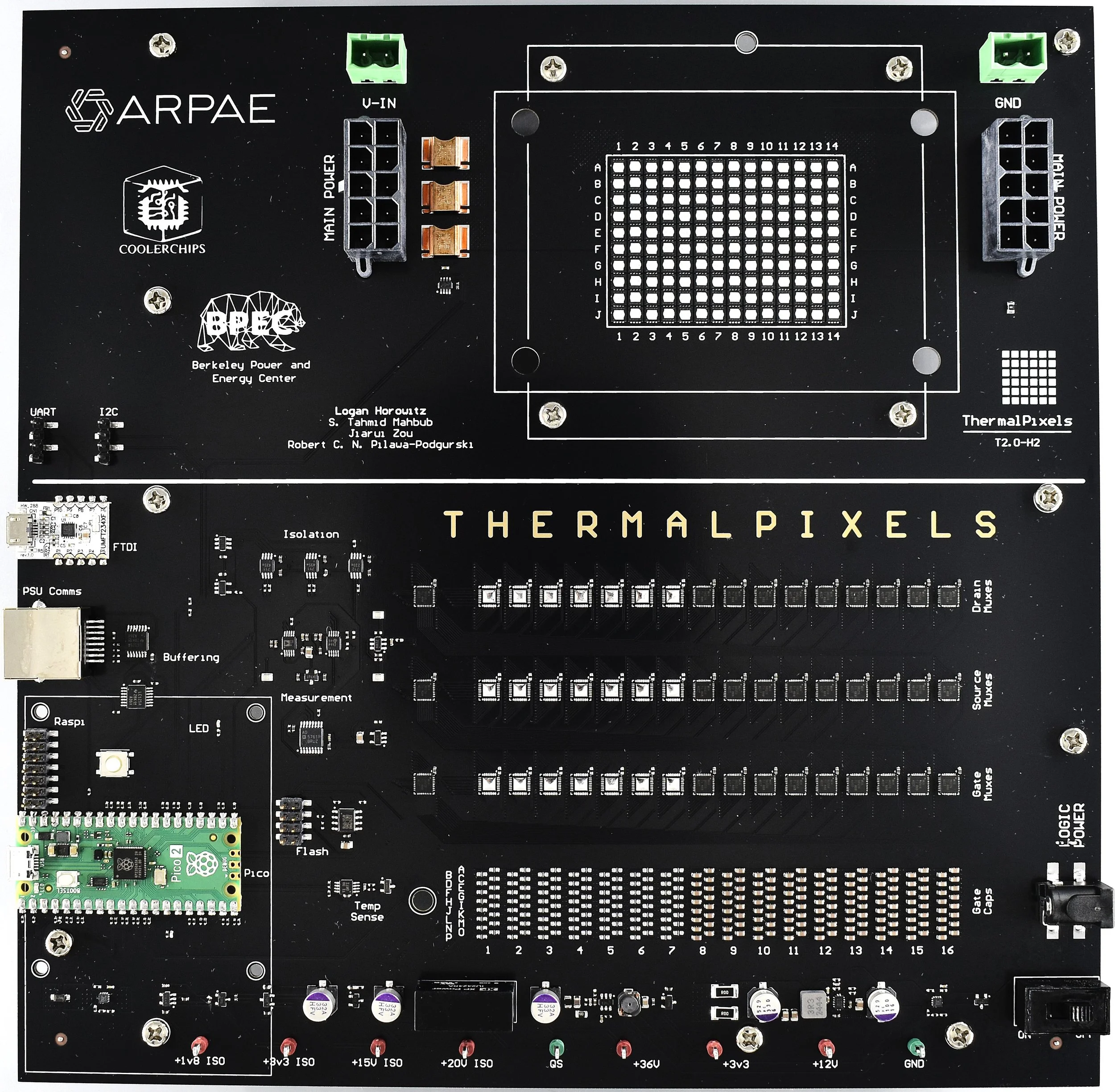

The Centaur
Our latest thermal test vehicle design includes a 10 x 14 transistor array to provide 140 independent heating zones and temperature sensors within a 36mm x 51mm area.
The system operates with just a single power input and a USB connection — no extra sensors or programming required. The Centaur enables high-fidelity thermal testing and rapid evaluation of cooling solutions.
140 heating zones with temp. measurements
Up to 4 kW power
Up to 10 W/mm² heat flux

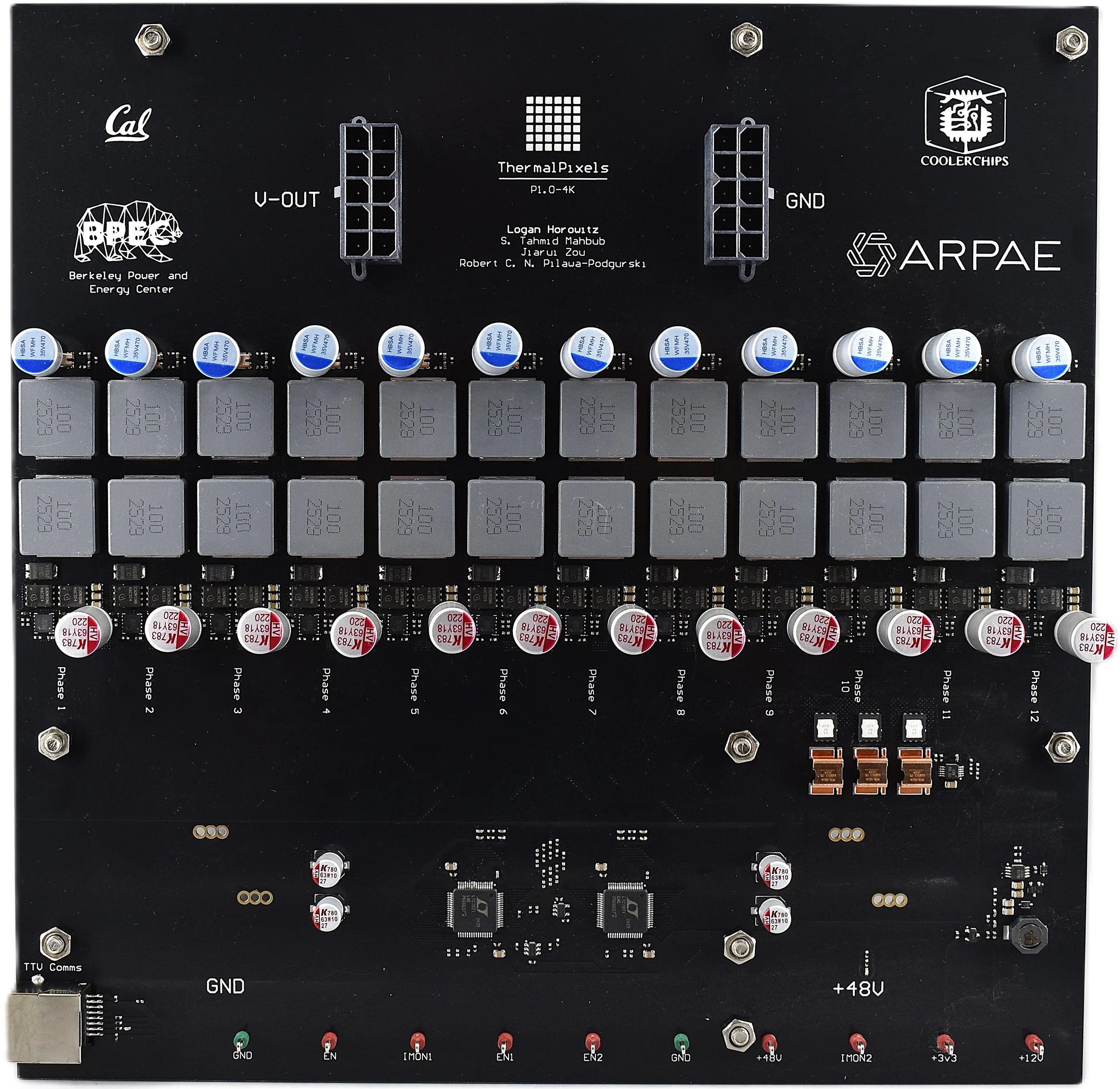

4 kW Power Supply
Our power supply is engineered for flexibility and ease of integration. It accepts a 36–48 V DC input and automatically delivers the exact power the TTV requires for any test condition. With this unified design, the entire system runs from a single DC input — simplifying setup, reducing clutter, and enabling rapid deployment in any lab environment.

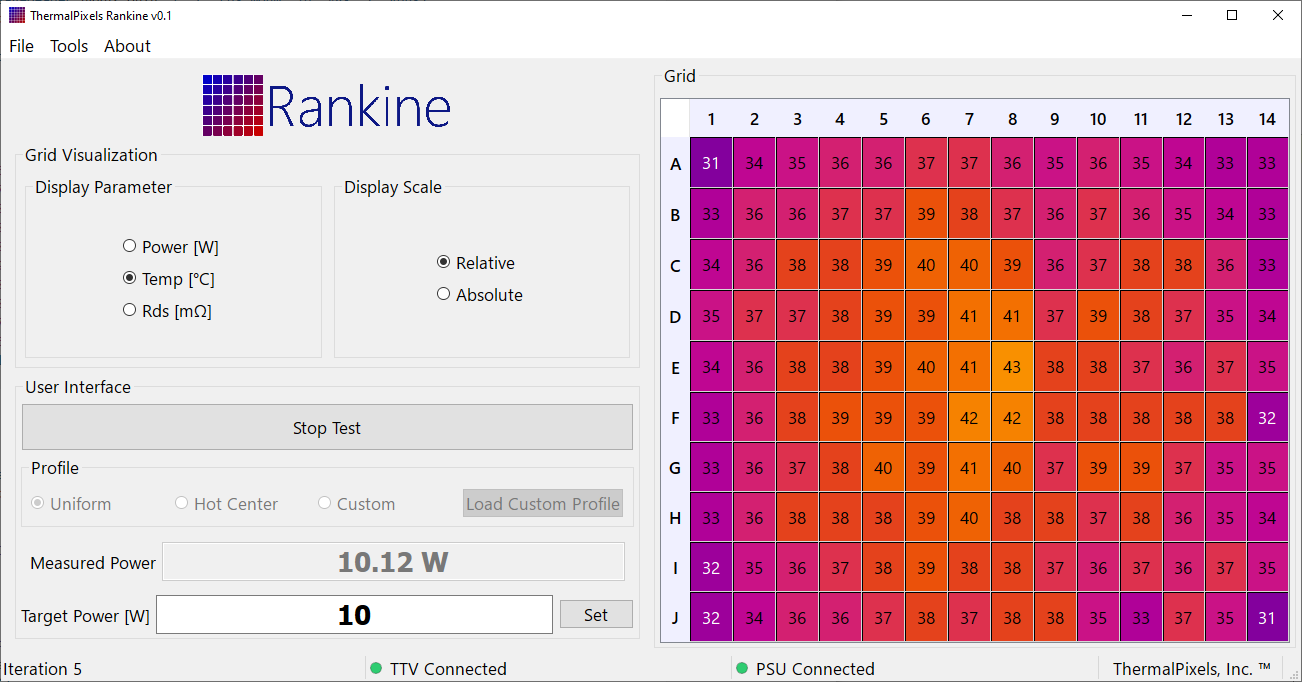

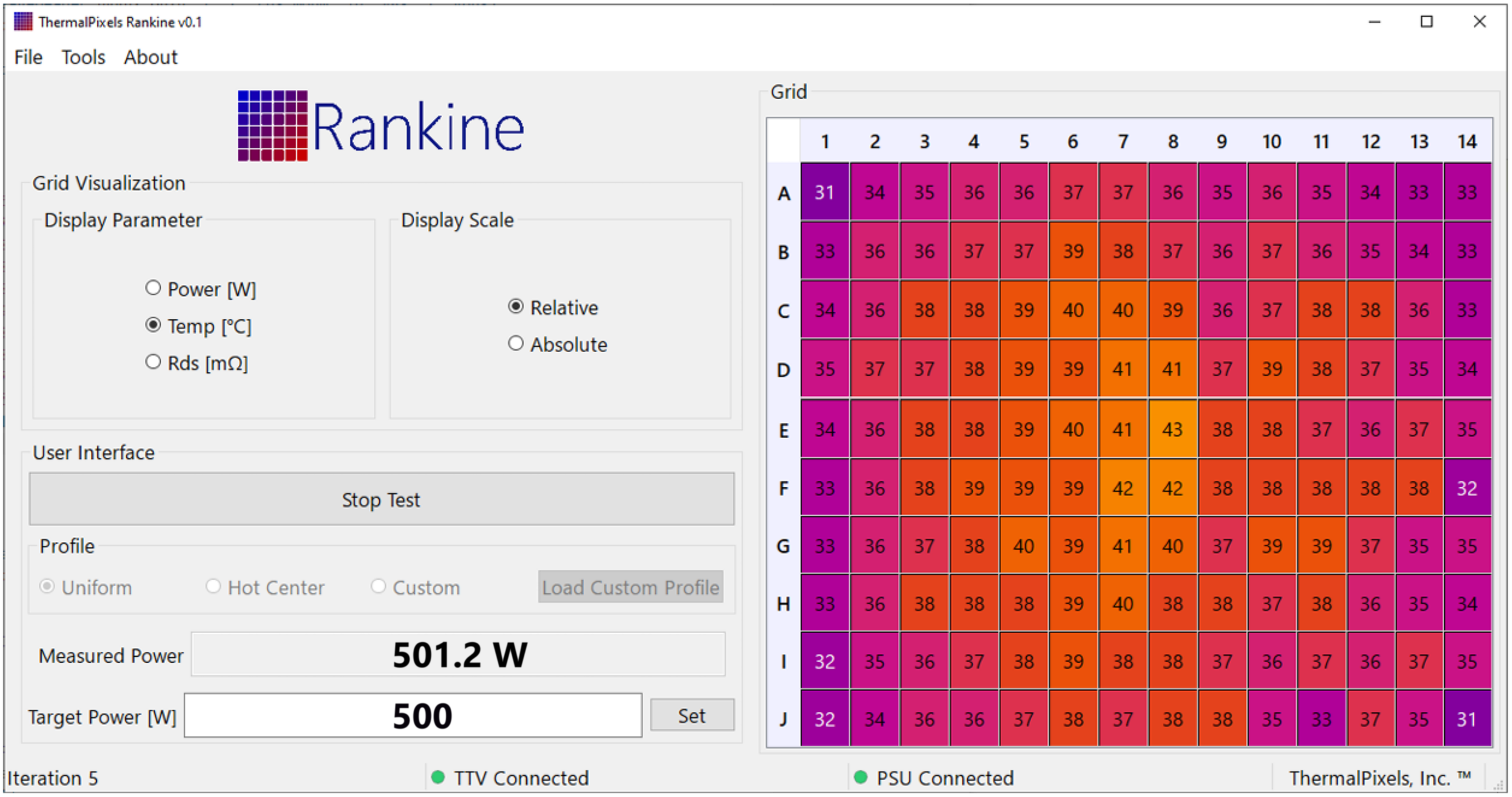

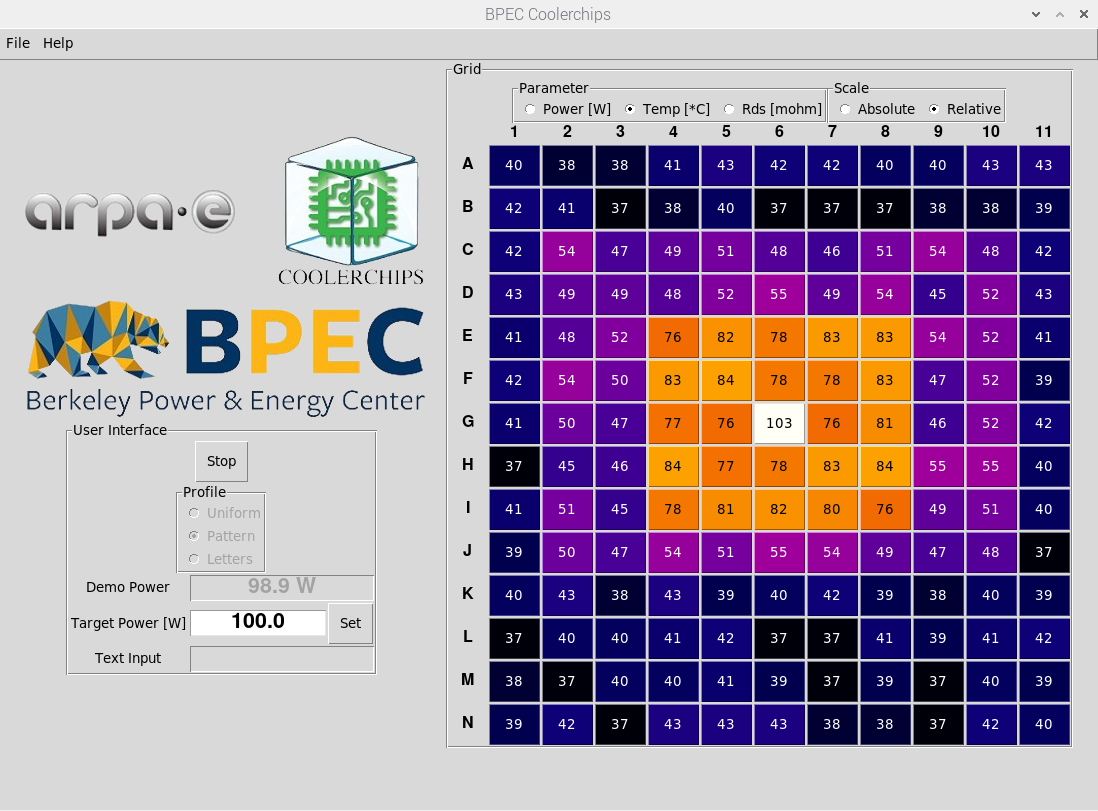

Graphical User Interface (GUI)
ThermalPixels provides a comprehensive software suite that manages every aspect of TTV operation, from low-level hardware control to live data acquisition, storage, and visualization. The software also allows users to define test specifications and execute experiments effortlessly through a GUI. No programming is required — the full system is ready to use out of the box.
